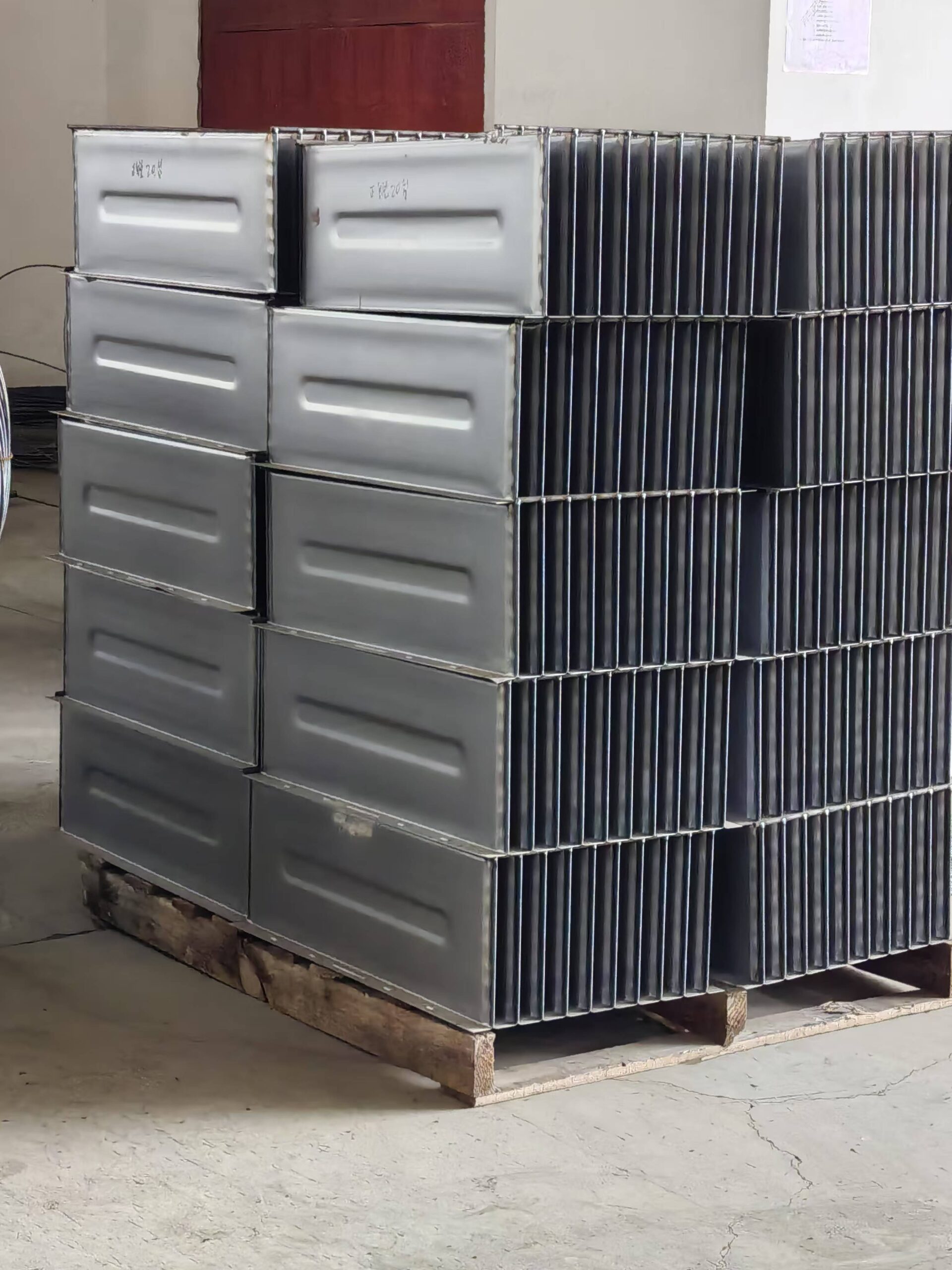

Transformer Corrugated Fin

Main Technical Parameters of Corrugated Fin Radiator used on oil immersed transformer tank

1. Width of corrugation fin: 300~1600 mm
2. Thickness of steel sheet: 0.5-1.80 mm
3. Length of formed sheet: >=290 mm
4. Height of corrugation: 50-400 mm
5. Corrugation pitch: >=40 mm
6. Corrugation pitch accuracy: ±0.25 mm
7. Corrugation inner gap: 6-8 mm
8. The both ends of the corrugation can be with reinforcing rod: the diameter of round rod bar 6~8 mm
9. Spot and Embossments are also available on customers’requirement

(1). Support Customized-made| Excellent workmanship | Original factory | Diverse specifications | High efficiency of heat dissipation

(2). It is a kind of wavy corrugation fin shape. This corrugated fin increases the heat dissipation area, and enhances the heat dissipation effect, providing more comprehensive heat dissipation for transformers.

(3). Transformer corrugated sheet accessories, used on power oil immersed transformer heat sink. Good corrosion resistance and stability, and can effectively resist corrosion and erosion from external environments

(4). This transformer corrugation fin radiators have strong tensile.

(5). Made of high-strength and corrosion-resistant high-quality steel plates, it can be used for a long time in harsh environments such as humidity.

(6). Material: cold-rolled steel plate fin radiators / New stainless steel fin radiators: customized sample is available based on customers’ drawing.

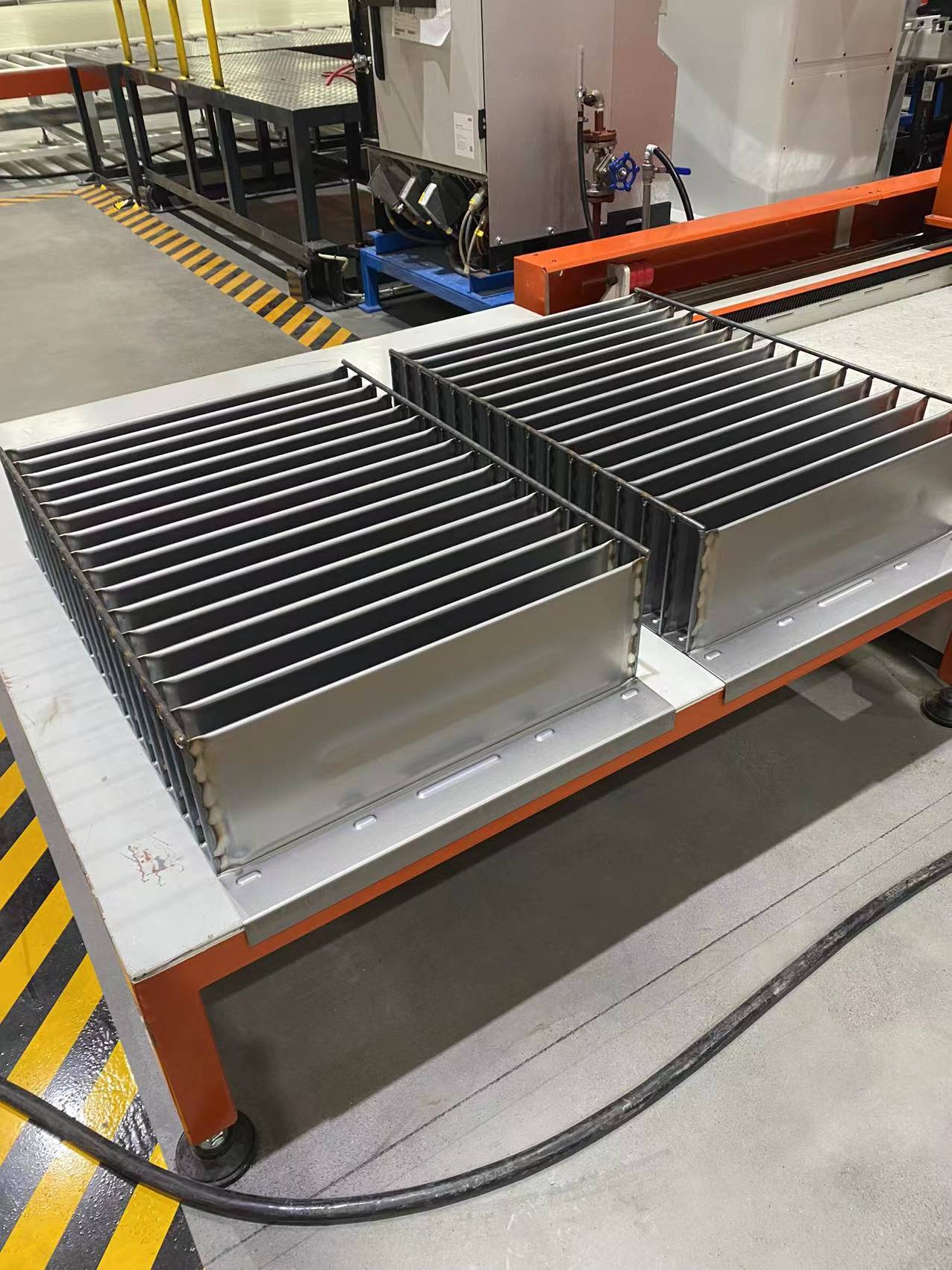

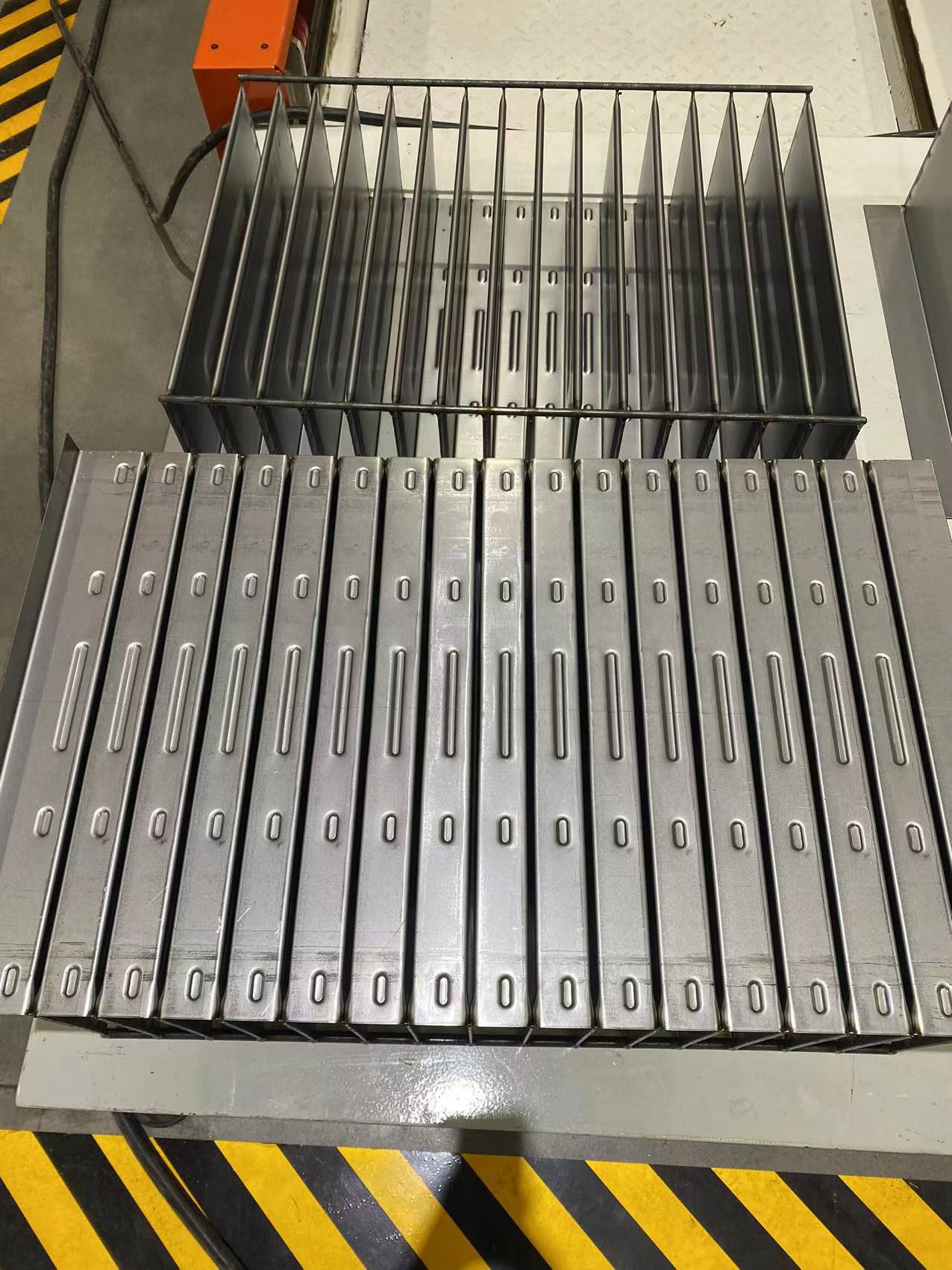

Fin Radiator with reinforced rod as below

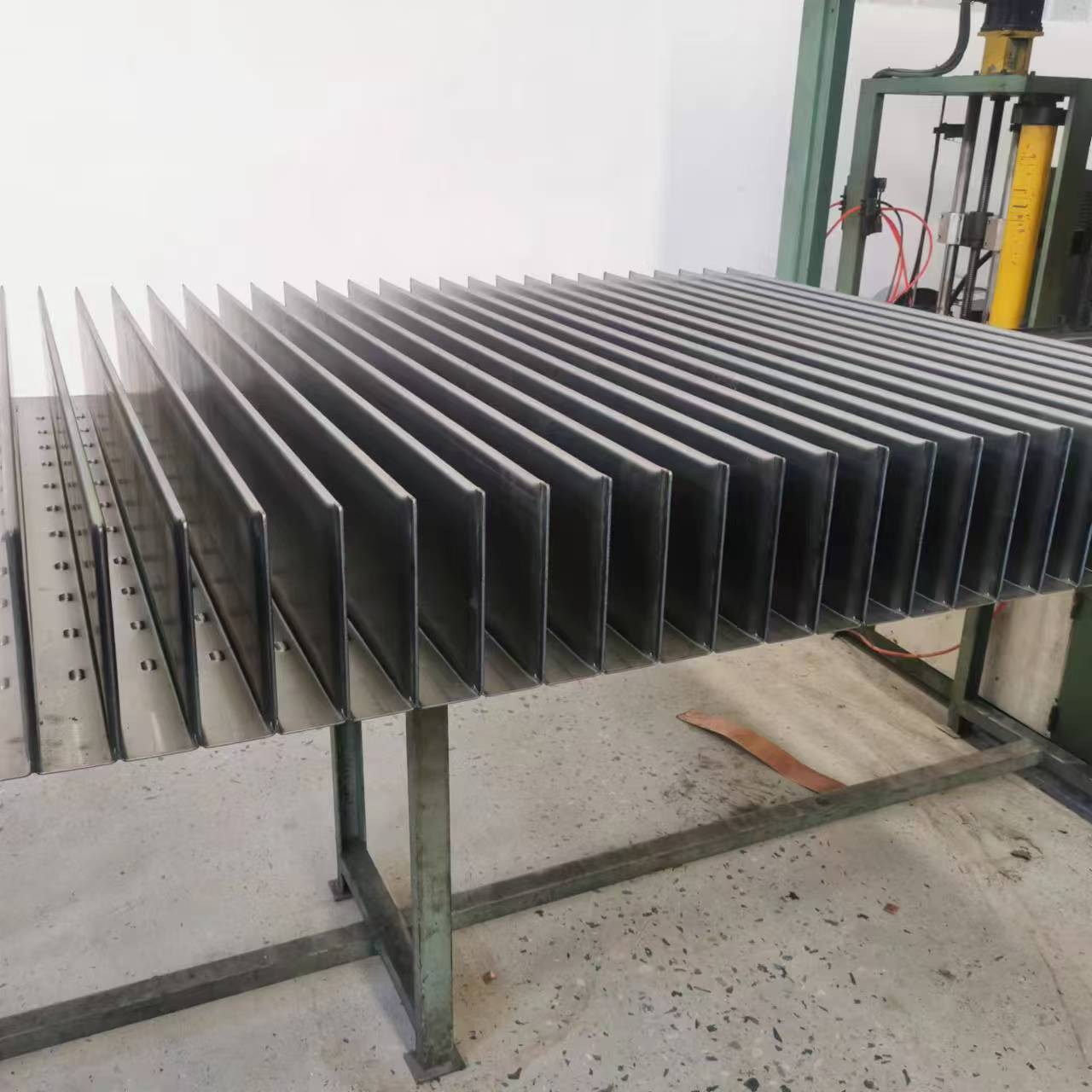

Large Size 1600 mm of Transformer Corrugation Fin Radiator

The corrugated sheet in oil immersed transformers plays a crucial role as a key component. It first ensures the stability of the transformer oil level through its elastic deformation characteristics, avoiding damage to the transformer caused by oil level fluctuations. Secondly, the corrugated sheet acts as a precise filter, effectively blocking the entry of gas and water into the interior of the transformer, maintaining the purity and stability of the transformer oil.

Furthermore, its unique sealing design can prevent transformer oil from leaking from the oil tank connection, ensuring the safe operation of the transformer. In summary, the corrugated sheet not only stabilizes the oil level and filters impurities in oil immersed transformers, but also prevents oil leakage, making it an essential component for ensuring the safe and reliable operation of transformers.

The design principle of corrugated sheets is mainly to use their unique corrugated structure to increase surface area and strength, while guiding fluid flow. In oil immersed transformers, the corrugated sheet, through its corrugated shape, can effectively disperse the pressure of the oil, maintain the stability of the oil level, and help with heat dissipation.

In addition, the design of corrugated sheets also needs to consider factors such as the durability, deformation resistance, and compatibility with transformer oil of their materials. We have several corrugated sheet products here. You can take a look and see if there are any suitable ones, please contact us freely.
