Transformer radiator panel production line

Fully automatic transformer radiator fin panel production line

Product Specification: Slice width 535mm, 520mm, 480mm, 460mm, 320mm (subject to change upon request).
The thickness of the slice is 42mm (pitch 45mm), to satisfy the requirements of two slices with one weld.
Center distance: 500mm-4000mm. Center distance error: ± 0.5mm.

Single slice withstand pressure: positive pressure ≥ 0.15Mpa negative pressure≥ 133Kpa, no distortion. Thickness of single slice oil groove: plate thickness 1.0 ≥ 11mm, plate thickness 1.2 ≥ 11.5mm

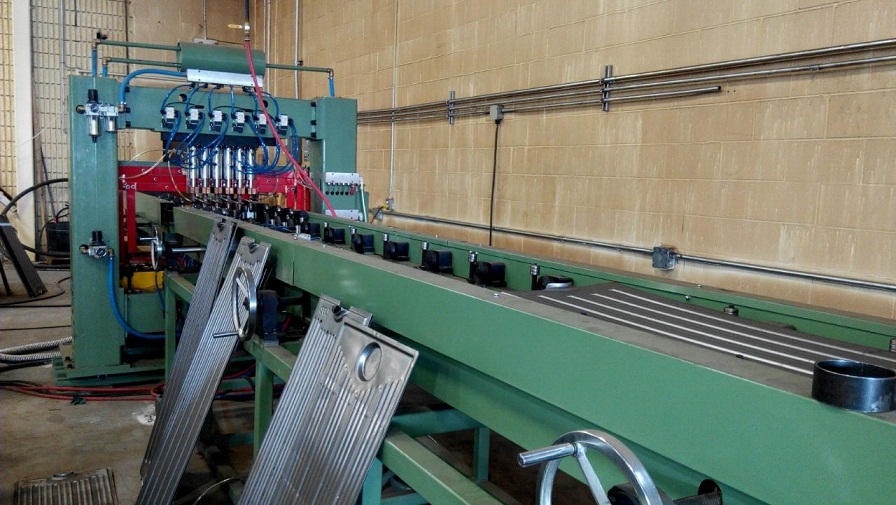

Number of spot welding bead: Slice width 535mm, 520mm 6 bead. Slice width 480mm, 460mm 5 bead, slice width 310mm 3 bead.

Workpiece material: high quality cold-rolled coil sheet.

Material quality: ST12,SPCC,DCO1 Thickness 1.0mm-1.2mm

Slice width 535 coil width 545, slice width 520 coil Width 530, slice width 480 coil width 490, slice width 460 coil width 470, slice width 310 coil width 320.

1. The production processing of end seam welding is:

Loading — Automatic rewind — Rolling — Hydraulic forming — Automatic laminator — Multi spot welding — Bilateral seam welding — End welding — Rolling cut bilateral — Cut end — Leveling and deflashing — Unloading.

2.The production processing of end argon arc welding is:

Loading — Automatic rewind — Rolling — Hydraulic forming — Automatic laminator — Multi spot welding — Bilateral seam welding — Rolling cut bilateral — Cut end — End argon arc welding — Leveling and deflashing — Unloading

If you want to have this machine to produce corrugated fin tank, please feel free to contact us!
